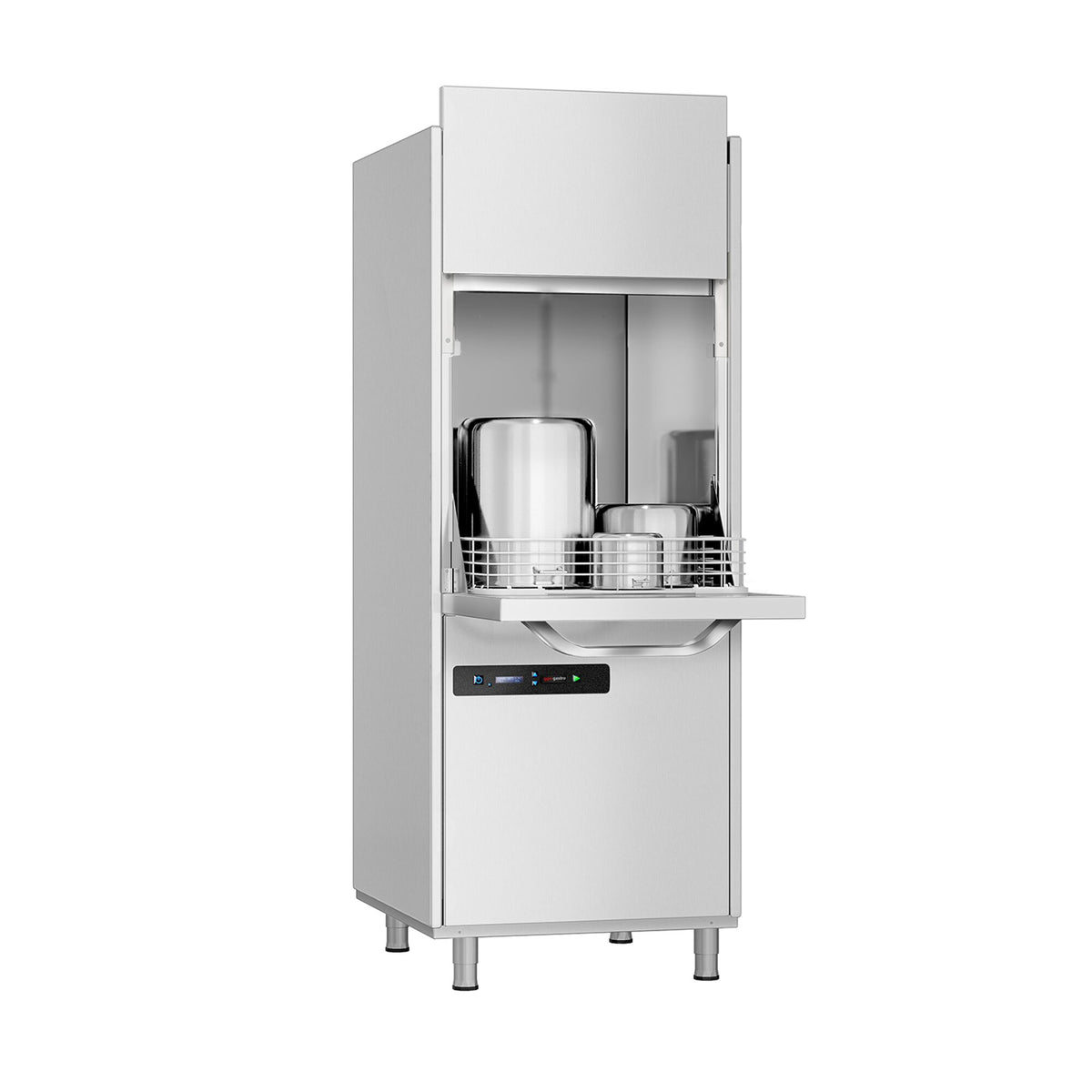

Product code: TSS56Double-Skinned Pot / Utensil Washer - Digital Controls - 11.35kW - with Detergent & Rinse Aid Pumps
Free shipping item
€4.211,99
In stock
Similar products
1-year warrantyIncluded with your purchase
Home deliveryDelivered in 3–5 days
Secure paymentsShop with confidence
Product advantages
- Double-walled insulated walls - for low noise levels and reduced heat radiation from the machine
- Pumps empty automatically after the wash cycle
- excellent cleaning results
- all internal components can be easily removed for cleaning
Design
- Floor-standing unit
- Double-walled pot washer with detergent and rinse aid pump
- Door opening mechanism with integrated safety system
- 2 Wash arms for effective cleaning
- With rinse arms
- Automatic start when door is closed
- with 4 cycles
- Electronic control panel with LCD display for user-friendly operation
- High washing performance with excellent cleaning results
Quality
- Body made of high quality stainless steel AISI 304
- Very robust device
Technology
- wash tank with filter sytem (easy and quick cleaning)
- Rotating, non-clogging wash and rinse jets
- One pump for rinse aid andwashing-up liquid
Scope of delivery
- 1x universal basket
- 1x tray basket
- Device is delivered without plug!
Notes
- Information on the supply voltage can be found in the user manual
- Only suitable for chlorine free detergents.
- Please note that the appliance can be operated with either a hot or cold water connection. The rinse cycle values can only be guaranteed with a hot water connection.
- We recommend regular descaling of the appliance to ensure flawless operation.
- If you have used a descaler upstream, note that after approx. 1500 - 2000 Liter water flow rate the cartridge must be regenerated. The actual maximum flow rate depends on the water hardness.
- Detailed instructions can be found under the tabs 'Download' and 'Video'.
Guidelines
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
- Material complies with European food standards
Specifications
Dimensions
| Width | 685 mm |
|---|---|
| Depth | 720 mm |
| Height | 1.690 mm |
| Height open | 1.860 mm |
Basket dimensions
| Width | 570 mm |
|---|---|
| Depth | 620 mm |
Rack height
| Height | 620 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Hardness of water | 7 - 12 °dH |
| Water pressure | min. 2 Bar to max. 4 Bar |
| Sound level | 66 dB(A) |
| Max. Pot height | 595 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 3 l |
Capacity
| Tank capacity | 30 l |
|---|---|
| Boiler capacity | 12 l |
Connected load
| Power | 11,35 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 133 kg |
| Net weight | 124 kg |
