GGM GastroProduct code: GSN300

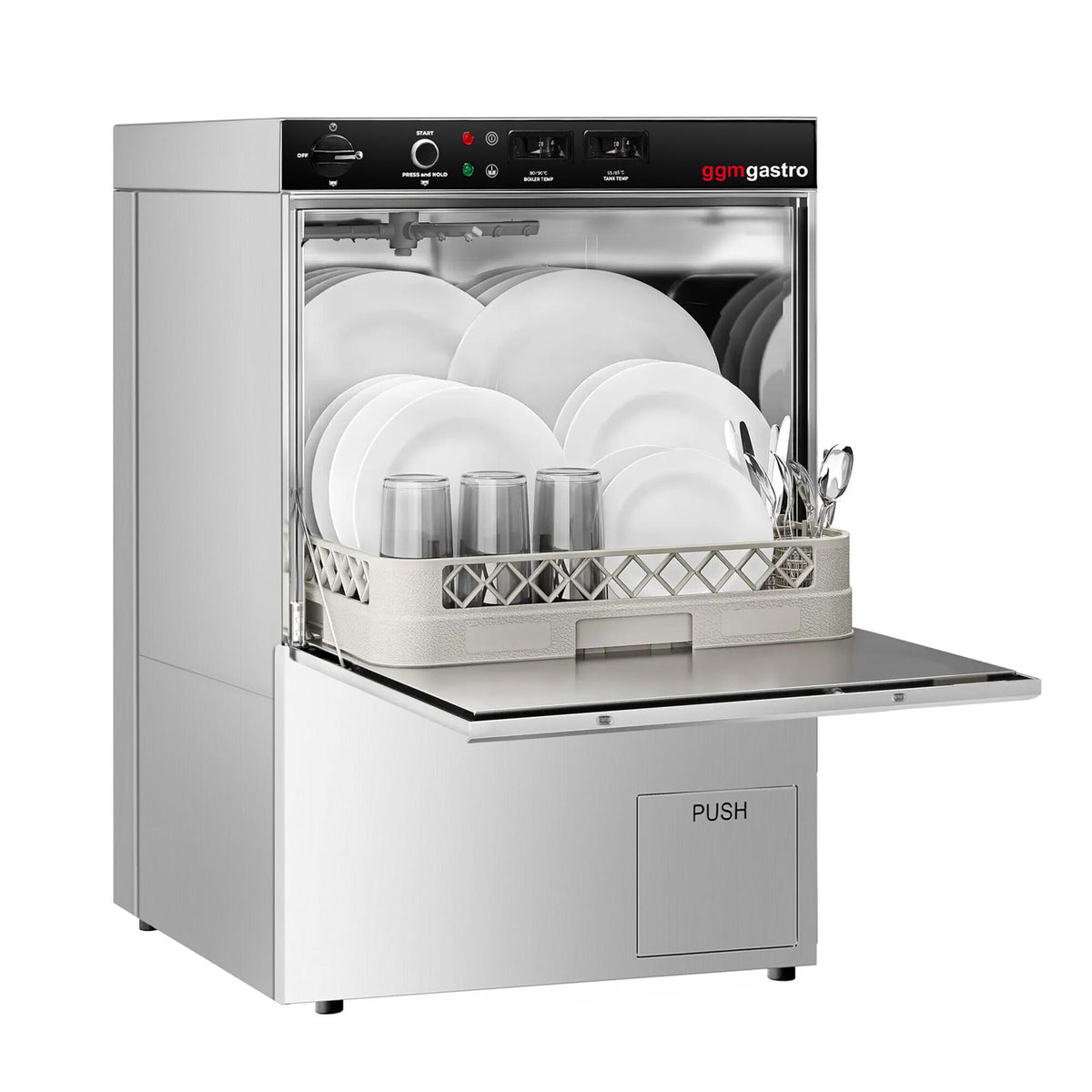

Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 5.1kW - with Drain, Rinse Aid & Detergent Pumps

1-year warrantyIncluded with your purchase
Home deliveryDelivered in 3–5 days
Secure paymentsShop with confidence

Product advantage

  • Drain pump pumps dirty water over a height difference into the wastewater connection

Design

  • with drain pump
  • Substructure device
  • Manual control panel with boiler and water tank thermometer for easy handling
  • with 2 cycles

Quality

  • Body and tank made of high-quality Stainless Steel

Scope of delivery

  • 1x dish rack
  • 1x plate basket

Guidelines

  • Manufactured in accordance with relevant hygiene and safety standards
  • CE marking as proof of conformity with EU regulatory standards
  • Material complies with European food standards

Notes

  • For safety reasons, the appliance should be connected to the power supply as a single group
  • Information on the supply voltage can be found in the user manual
  • Hot water connection recommended
  • Please note that this appliance is only suitable for chlorine-free cleaners
  • We recommend regular descaling of the appliance to ensure flawless operation.
  • If you have used a descaler upstream, note that after approx. 1500 - 2000 Liter water flow rate the cartridge must be regenerated. The actual maximum flow rate depends on the water hardness.

Specifications

Dimensions

Width 590 mm
Depth 630 mm
Height 820 mm

Basket dimensions

Width 500 mm
Depth 500 mm

Rack height

Insertion height 300 mm

Details

Operation manual
Rinsing time 90.00 s or 180.00 s
Inlet water temperature 45 °C to 50 °C
Rinse temperature 55 °C
Rinse aid temperature 85 °C

Capacity

Plate capacity 500 pieces/h
Tank capacity 29 l

Water connection

Water connection 3/4" inches
Water discharge 32 mm Ø
Drain height 350 mm
Water supply pressure 2 Bar
Maximum water hardness 15 °Fr

Connected load

Power 5,10 kW
Voltage 230V
Phase(s) 1N~/PE
Frequency 50 Hz

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 60 kg
Net weight 70 kg
