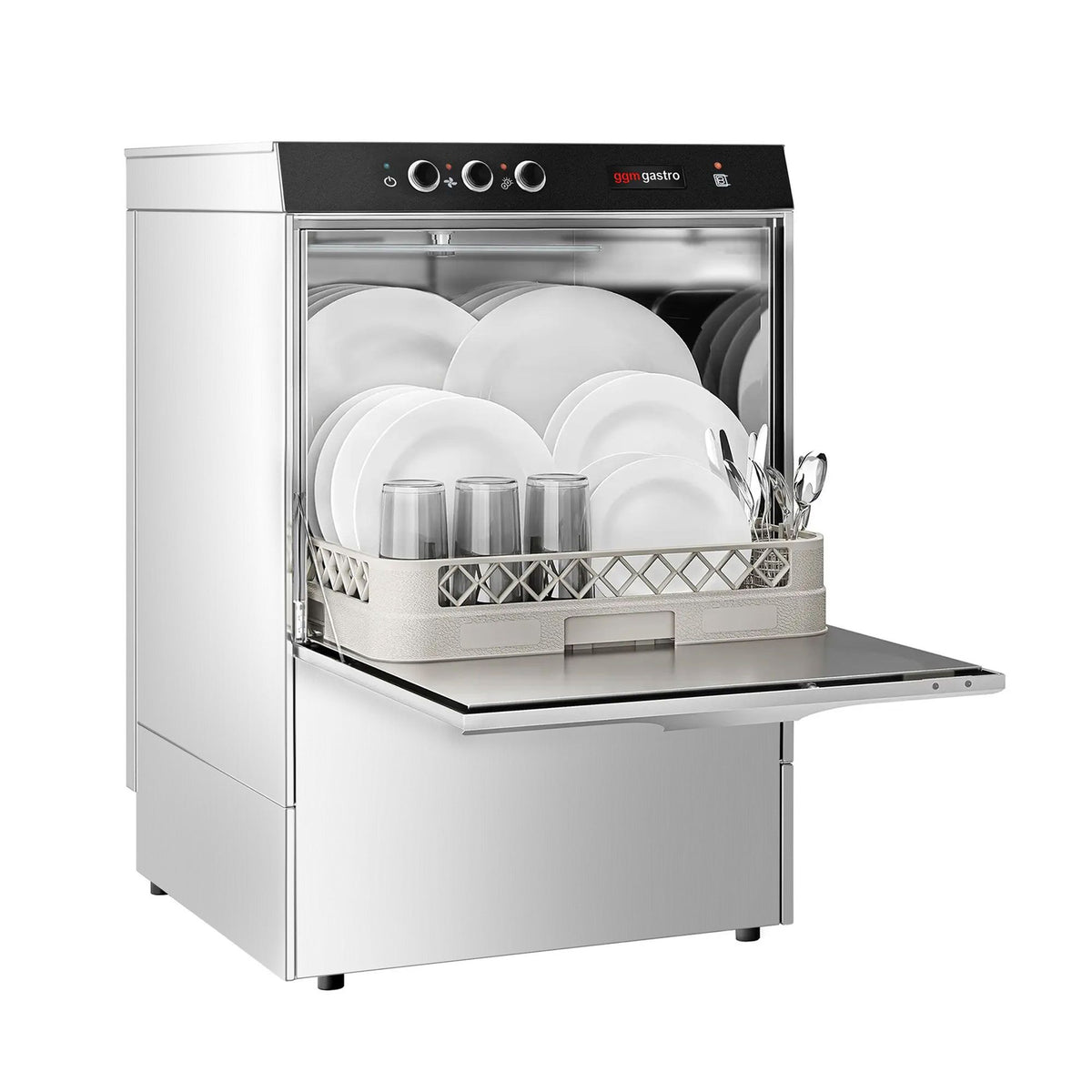

GGM GastroProduct code: GS330E

Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 4.9kW - with Detergent & Rinse Aid Dosing Pumps

1-year warrantyIncluded with your purchase
Home deliveryDelivered in 3–5 days
Secure paymentsShop with confidence

Design

  • Single-wall dishwasher without drain pump
  • Substructure device
  • 2 Wash arms for effective cleaning
  • With detergent pump and rinse aid arms
  • Electromechanical controls, no servicing required
  • Door opening mechanism with integrated safety system
  • High washing performance with excellent cleaning results

Quality

  • Made from high-quality Stainless Steel
  • Very robust device

Rinsing process

  • Flushing time: 180 seconds
  • Maximum number of baskets : 20

Technology

  • Automatic dosage of rinse aid
  • Rotating, non-clogging wash and rinse jets
  • Cleaner tank with double filter system
  • electric rinse aid dosage pump (white  hose)

Scope of delivery

  • 1x universal basket
  • 1x dish rack
  • 1x cutlery basket
  • Device is delivered without plug/cable

Guidelines

  • Manufactured in accordance with relevant hygiene and safety standards
  • CE marking as proof of conformity with EU regulatory standards

Notes

  • Information on the supply voltage can be found in the user manual
  • Please note that the appliance can be operated with either a hot or cold water connection. The rinse cycle values can only be guaranteed with a hot water connection.
  • Only suitable for chlorine free detergents.
  • We recommend regular descaling of the appliance to ensure flawless operation.
  • If you have used a descaler upstream, note that after approx. 1500 - 2000 Liter water flow rate the cartridge must be regenerated. The actual maximum flow rate depends on the water hardness.
  • Detailed instructions can be found under the tabs 'Download' and 'Video'.

Specifications

Dimensions

Width 565 mm
Depth 610 mm
Height 825 mm

Basket dimensions

Width 500 mm
Depth 500 mm

Rack height

Height 345 mm

Water connection

Water inlet 3/4"
Water drain 1" 3/4

Details

Inlet water temperature 55 °C
Washing temperature 50 - 60 °C
Purge temperature 82 °C - 85 °C
Max. Crockery height 320 mm

Flushing process

Rinsing time 180 seconds
Maximum number of baskets 20
Water consumption per run 2,60 l

Capacity

Tank capacity 23 l
Boiler capacity 5,50 l

Connected load

Power 4,90 kW
Voltage 400V
Phase(s) 3N~/PE
Frequency 50 Hz

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 58 kg
Net weight 47 kg
