GGM GastroProduct code: EWI42N

Commercial Ice Machine - Bullet - 46kg/24h - with Storage Bin

1-year warrantyIncluded with your purchase
Home deliveryDelivered in 3–5 days
Secure paymentsShop with confidence

Design

  • ice cube machine
  • Ice cube mold: Cylindrical in 22 g or 34 g
  • On / off switch
  • incl. water connection
  • Thermostat
  • Produces solid, crystal-clear ice cubes
  • Ideal for companies with limited space
  • Anti-scale spray system
  • Electronic control enables extreme climatic conditions
  • "Never Stop" motor pump (avoids deterioration in hard water).
  • Powerful and constant cooling
  • Easy to use

Quality

  • Robust design
  • Body made of high-quality Stainless Steel AISI 304

Cooling

  • Eco-friendly
  • Energy-saving
  • Particularly water-saving
  • Less heat generation during operation
  • Higher efficiency due to larger production quantity

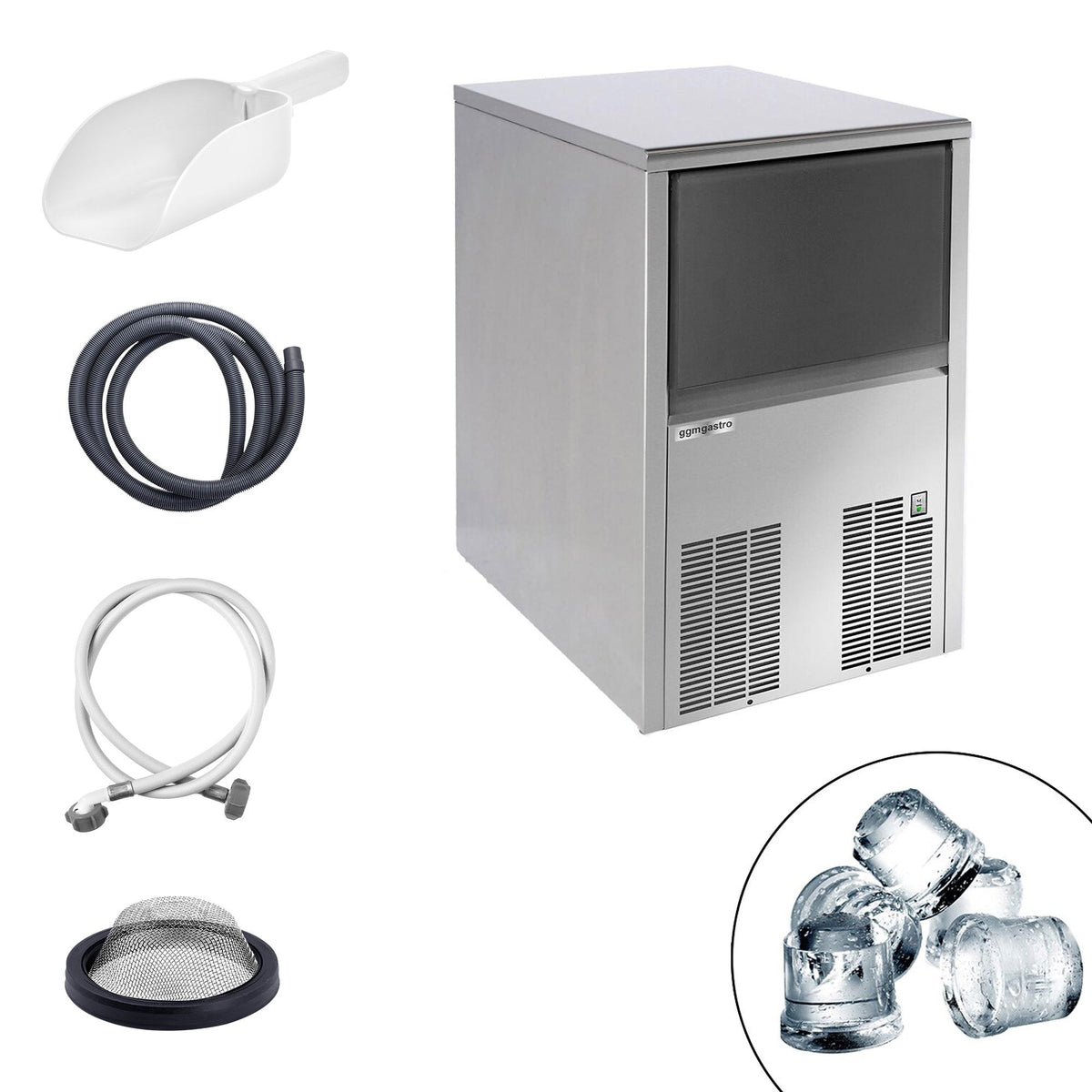

Scope of delivery

  • 1x Water inlet hose
  • 1x drain hose
  • 1x ice shovel
  • 1x Water inlet filter/ seal
  • 1x set of 4 height-adjustable feet

Please note

  • This appliance requires a fixed water connection!
  • Wastewater drainage required
  • Attention: The built-in containers are not suitable for long-term storage of ice cubes!
  • We recommend regular descaling of the appliance to ensure flawless operation.
  • If you have connected a descaler upstream, note that the cartridge must be regenerated after approx. 1,500 - 2,000 liters of water flow. The actual maximum flow rate depends on the water hardness.
  • Detailed instructions can be found under the tabs 'Download' and 'Video'.

Guidelines

  • Manufactured in accordance with relevant hygiene and safety standards
  • CE marking as proof of conformity with EU regulatory standards
  • Material complies with European food standards

Specifications

Dimensions

Product Dimensions (WxDxH)435 x 605 x 702 mm

Details

Ice Cube ShapeCylindrical
Dimensions of a full ice cube39 x 39 x 38 mm
Weight of a full ice cube34 g
Dimensions of half-ice cubes39 x 39 x 35 mm
Weight of ice cubes22 g
Ice Production per Day46 kg
Maximum filling quantity15 kg
Water pressure1 bis 6 bar

Composition

Product materialStainless Steel AISI 304

Cooling performance

Cooling typeVentilation
Water temperature5 bis 35 °C
Environmental temperature5 bis 43 °C
Refrigerant TypeR290
Refrigerant Quantity0,12 kg

Connected load

Operationmanual
Power389 Watt
Power Connection230V
Phase1N~/PE
Current intensity4,10 A
Water ConnectionIn/Outlet
Dimension water inlet3/4"

Delivery

Shipping MethodHaulage
Delivery conditionMounted
Gross Weight43 kg
Net Weight41,40 kg

Documents

Commercial Ice Machine - Bullet - 46kg/24h - with Storage Bin
