GGM GastroProduct code: EWBS127

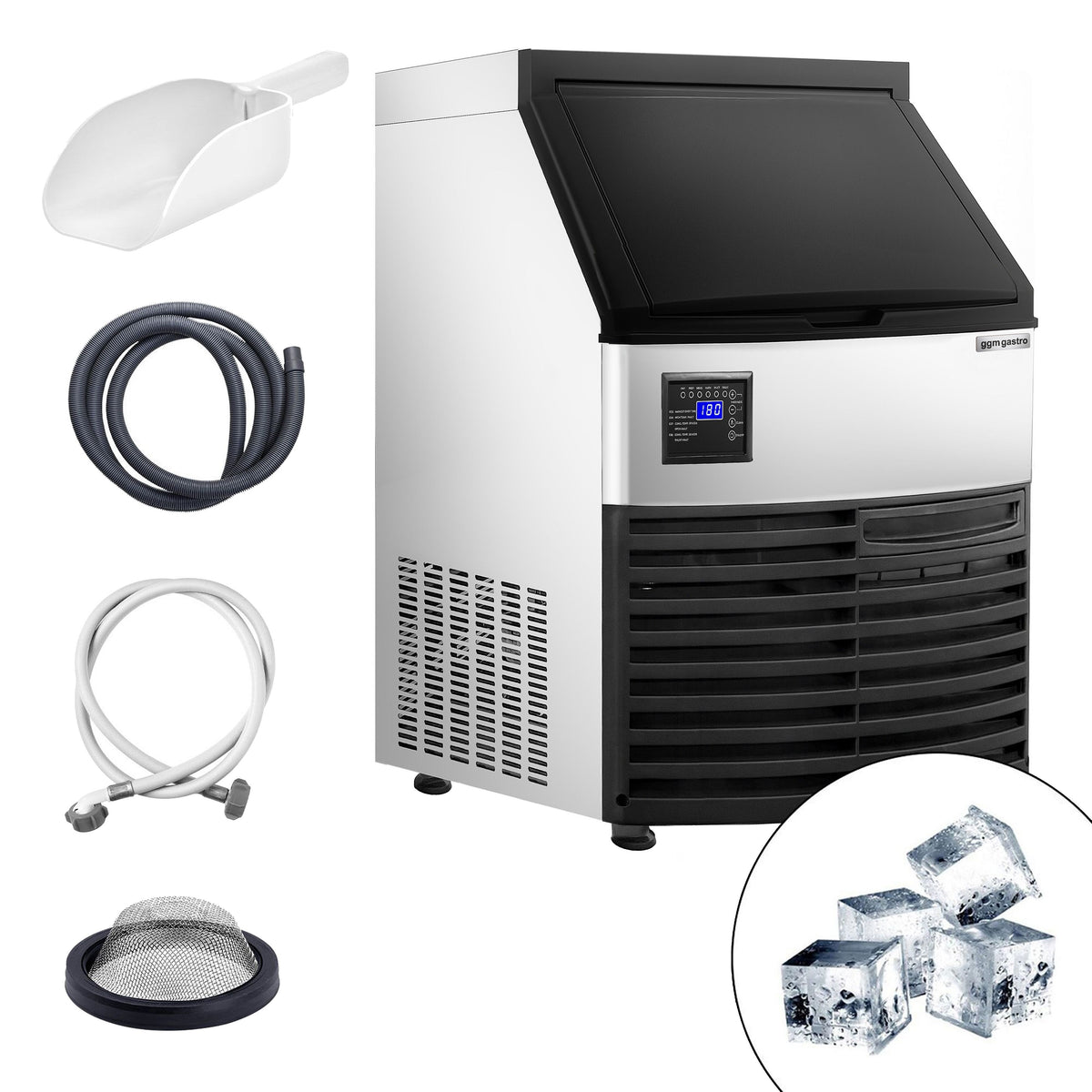

Commercial Ice Machine - Cube - 127 kg/24 h

1-year warrantyIncluded with your purchase
Home deliveryDelivered in 3–5 days
Secure paymentsShop with confidence

Product advantages

  • Integrated waste water pump - Thanks to the internal drain pump, water collecting at the bottom is reliably drained away - with a delivery head of up to 1 m and a drainage capacity of approx. 4 l/minute
  • Fully automatic ice production - Starts automatically after connection to drinking water and electricity
  • High efficiency - A production cycle takes 10-20 minutes depending on the environment
  • Self-protection functions - Automatic switch-off in the event of overheating, low water pressure, high pressure or blocked ice discharge

Design

  • Ice cube maker with integrated storage bin
  • Cleaning program - automatic clean and rinse mode for hygienic operation
  • LED display & control panel - clear display of operating states and status messages
  • Adjustable ice cube thickness - adjustment of ice thickness at the touch of a button
  • Removable air and water filters
  • Powerful and constant cooling

Quality

  • Body made from high-quality Stainless Steel AISI 304
  • Environmentally friendly food-grade materials
  • Corrosion-resistant, chemically nickel-plated evaporator
  • High-quality compressor and durable fan motors

Scope of delivery

  • 1x Water inlet hose
  • 1x drain hose
  • 1x ice shovel
  • 1x Water inlet filter/ seal

Please note

  • This appliance requires a fixed water connection!
  • We recommend regular descaling of the appliance to ensure flawless operation.
  • If you have connected a descaler upstream, note that the cartridge must be regenerated after approx. 1,500 - 2,000 liters of water flow. The actual maximum flow rate depends on the water hardness.

Guidelines

  • Manufactured in accordance with relevant hygiene and safety standards
  • CE marking as proof of conformity with EU regulatory standards
  • Material complies with European food standards

Specifications

Dimensions

Product Dimensions (WxDxH)660 x 707 x 919 mm

Details

Ice Cube ShapeWhole cubes
Ice Production per Day127 kg
Water pressure1.3 BAR bis 5.5 BAR

Composition

Product materialStainless Steel AISI 304
Interior lightingLED

Cooling performance

Cooling typeVentilation
Water temperature5 bis 35 °C
Environmental temperature5 bis 40 °C
Refrigerant TypeR290
Refrigerant Quantity0,12 kg

Connected load

Operationmanual
Power830 Watt
Power Connection230V
Phase1N~/PE
Water ConnectionIn/Outlet

Delivery

Shipping MethodHaulage
Delivery conditionMounted
Gross Weight68 kg
Net Weight60 kg
